RMAN Duplicate Active Database Clone Oracle 12c


I was doing a 12c database clone from  one server to another server using active duplicate method.
Why I am doing this is an interesting series. with more to come.
Now lets focus on this post

Source System:

DB Name: FUAT
Server Name: funebs122.lab
IP: 192.168.56.120
Oracle Home: /oraapps122/DATABASE/FUAT/12.1.0
OS: OEL7.9
OS user: oracle

Target System:

DB Name: HIMS
Server Name:   funebs122clone.lab
IP: 192.168.56.121
Oracle Home: /oraapps122/DATABASE/FUAT/12.1.0
OS : OEL7.9
OS user: oracle

My Oracle Home path is same as I have made a clone copy of server. But it can be different path as well.

Steps:


1) Check the Source database is in archive mode and up and running.


2)  Make sure both source and target system can ping each other.






3) Copy password file from source to target oracle home

If password file is not present create on source and then copy.

[oracle@funebs122 dbs]$ orapwd file=orapwFUAT password=oracle123 entries=10 force=y

Enter password for SYS:
[oracle@funebs122 dbs]$ ls -tlr orapwFUAT
-rw-r-----. 1 oracle oinstall 7680 Feb  2 21:55 orapwFUAT

[oracle@funebs122 dbs]$ scp orapwFUAT oracle@funebs122clone.lab:/oraapps122/DATABASE/FUAT/12.1.0/dbs/
The authenticity of host 'funebs122clone.lab (192.168.56.121)' can't be established.
ECDSA key fingerprint is SHA256:mh4/CAm6STmfkcJgpiKKH9eRgyI7l0UXXOsJlA6cj2g.
ECDSA key fingerprint is MD5:83:c9:3c:b7:2b:30:85:0e:49:d5:67:82:d3:66:d8:fd.
Are you sure you want to continue connecting (yes/no)? yes
Warning: Permanently added 'funebs122clone.lab,192.168.56.121' (ECDSA) to the list of known hosts.
oracle@funebs122clone.lab's password:
orapwFUAT                                                                            100% 7680     1.8MB/s   00:00

Because we are cloning with different SID copy the password file to clone name

cp orapwFUAT orapwHIMS

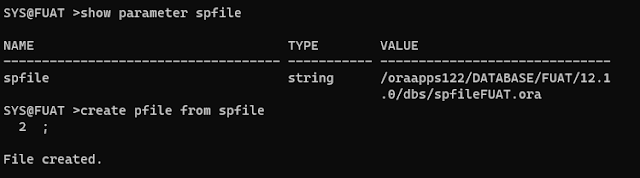

4) Create pfile on source database and copy to target.


Copying file to target

[oracle@funebs122 dbs]$ scp initFUAT.ora oracle@funebs122clone.lab:/oraapps122/DATABASE/FUAT/12.1.0/dbs/
oracle@funebs122clone.lab's password:
initFUAT.ora                                                                          100% 9780   211.4KB/s   00:00


5)  Edit the init file on target and create which ever required directories on the target system based on the init file changes.

As my target database name will be HIMS, I will change all the FAUT to HIMS and also change initfile name from initFUAT.ora to initHIMS.ora.

[oracle@funebs122clone dbs]$ mv initFUAT.ora initHIMS.ora


Find all the new directories in initfile and create on target server from oracle user.



I have created all these directories based on my init file

mkdir -p /oraapps122/DATABASE/HIMS
mkdir -p /oraapps122/DATABASE/HIMS/admin/trace
mkdir -p /oraapps122/DATABASE/HIMS/data
mkdir -p /oraapps122/DATABASE/HIMS/admin/cdump
mkdir -p /oraapps122/DATABASE/HIMS/admin
mkdir -p /oraapps122/DATABASE/HIMS/data/archive
mkdir -p /oraapps122/DATABASE/HIMS/appsutil/outbound

Also set the db and log file name convert in the initHIMS.ora file.

*.db_file_name_convert='/oracleapps/DATABASE/FUAT/data/','/oraapps122/DATABASE/HIMS/data/'
*.log_file_name_convert='/oracleapps/DATABASE/FUAT/data/','/oraapps122/DATABASE/HIMS/data/'
*.db_name='HIMS'


6) Create a Environment file for the target database HIMS

[oracle@funebs122clone ~]$ cat HIMS_db.env
export ORACLE_HOME=/oraapps122/DATABASE/FUAT/12.1.0
export ORACLE_BASE=/oraapps122/DATABASE
export ORACLE_SID=HIMS
export LD_LIBRARY_PATH=$ORACLE_HOME/lib:/usr/lib
export LIBPATH=$ORACLE_HOME/lib32:$ORACLE_HOME/lib:/usr/lib:/lib
export TNS_ADMIN=${ORACLE_HOME}/network/admin
export PATH=$ORACLE_HOME/bin:$PATH


7) Configure Listener and TNS for both Source and Target.

cd $ORACLE_HOME/network/admin

On source

listener.ora

FUAT =
  (DESCRIPTION_LIST =
    (DESCRIPTION =
      (ADDRESS = (PROTOCOL = TCP)(HOST = funebs122.lab)(PORT = 1551))
    )
  )

SID_LIST_FUAT =
  (SID_LIST =
    (SID_DESC =
      (ORACLE_HOME= /oraapps122/DATABASE/FUAT/12.1.0)
      (SID_NAME = FUAT)
    )
  )

tnsnames.ora

Add entry

SOURCE-FUAT=(DESCRIPTION = (ADDRESS_LIST = (ADDRESS = (PROTOCOL = TCP)(HOST = funebs122.lab)(PORT = 1551)))(CONNECT_DATA =(ORACLE_SID = FUAT)))
CLONE-HIMS=(DESCRIPTION = (ADDRESS_LIST = (ADDRESS = (PROTOCOL = TCP)(HOST = funebs122clone.lab)(PORT = 1558)))(CONNECT_DATA =(ORACLE_SID = HIMS)))

On Target

listener.ora

HIMS =
  (DESCRIPTION_LIST =
    (DESCRIPTION =
      (ADDRESS = (PROTOCOL = TCP)(HOST = funebs122clone.lab)(PORT = 1558))
    )
  )

SID_LIST_HIMS =
  (SID_LIST =
    (SID_DESC =
      (ORACLE_HOME= /oraapps122/DATABASE/FUAT/12.1.0)
      (SID_NAME = HIMS)
    )
  )

tnsnames.ora

Add entry

SOURCE-FUAT=(DESCRIPTION = (ADDRESS_LIST = (ADDRESS = (PROTOCOL = TCP)(HOST = funebs122.lab)(PORT = 1551)))(CONNECT_DATA =(ORACLE_SID = FUAT)))
CLONE-HIMS=(DESCRIPTION = (ADDRESS_LIST = (ADDRESS = (PROTOCOL = TCP)(HOST = funebs122clone.lab)(PORT = 1558)))(CONNECT_DATA =(ORACLE_SID = HIMS)))


8) Open HIMS database in nomount stage

Source the environment created in step 6.

SYS@HIMS >startup nomount pfile='/oraapps122/DATABASE/FUAT/12.1.0/dbs/initHIMS.ora';

ORACLE instance started.

Total System Global Area 2147483648 bytes
Fixed Size                  2926472 bytes
Variable Size             754976888 bytes
Database Buffers         1375731712 bytes
Redo Buffers               13848576 bytes



9) Now it's time for RMAN duplication.

On Target, server connect to rman and start the active duplication process.

Auxiliary(HIMS) database give same password as FUAT(sys/oracle123)

[oracle@funebs122clone dbs]$ rman target sys/oracle123@SOURCE-FUAT auxiliary sys/oracle123

Recovery Manager: Release 12.1.0.2.0 - Production on Wed Feb 2 23:16:48 2022

Copyright (c) 1982, 2014, Oracle and/or its affiliates.  All rights reserved.

connected to target database: FUAT (DBID=790651821)
connected to auxiliary database: HIMS (not mounted)

RMAN>   run{
   duplicate target database to 'HIMS' from active database NOFILENAMECHECK;
     }

Duplication has started.


10)  Verify target database once dupication completes

select name,open_mode from v$database;








If you like please follow and comment
